E-4WD Meaning

Electric All-Wheel Drive (E-4WD) is an innovative system that provides permanent front-wheel drive without any mechanical link between the front and rear axles. A separate electric motor powers the rear wheels, ensuring high efficiency and excellent handling in a variety of conditions.

This modern on-demand all-wheel-drive setup is widely used in newer car models. When you switch to 4WD mode, the control unit automatically activates the electric motor, which drives the rear wheels through a clutch and a reduction gear.

E-4WD combines the torque of a gasoline engine with the power of an electric motor, giving the vehicle exceptional adaptability. One of its key features is the use of two types of rear power modules, each equipped with its own electric motor and reduction gear:

• First Type (Three-Shaft Module)
  A classic three-shaft module available in various power and torque configurations. This flexibility allows the system to be tailored to each driver’s specific needs and preferences.

• Second Type (Two-Shaft Module / HV4WD)
  A compact two-shaft module featuring a low-power electric motor, known as HV4WD. It delivers optimal power and high efficiency, making it ideal for city driving and everyday commuting.

When driving on a slippery road, if wheel slip is detected, the electronic control unit activates a generator. This generator then powers an electric motor that drives the rear wheels.

When the driver suddenly presses the accelerator pedal, E-4WD instantly transfers some of the torque to the rear axle, ensuring all motors begin working without delay.

On slippery surfaces, E-4WD steps in gently by sending power to the rear wheels within fractions of a second after its sensors detect front-wheel slip.

Pretty cool, right? Yes, but the maintenance costs can be high:

⚠️ Important: E-4WD is advanced technology and may require specialized knowledge and skills for servicing. Before choosing a vehicle equipped with E-4WD, review the user manual and consult qualified specialists to understand the potential maintenance costs.

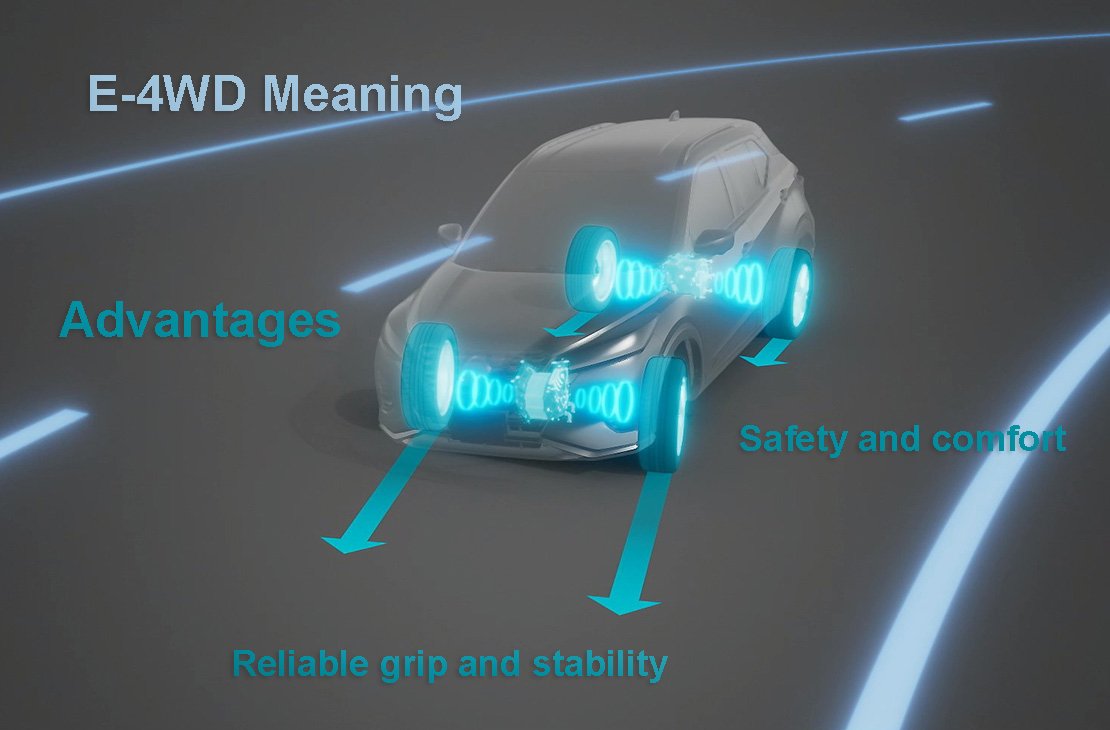

⚡ Main Advantage
The biggest advantage of the E-4WD system compared to other all-wheel drive systems is that it only activates when traction is lost at low speeds. This eliminates the need for a rear differential or a heavy driveshaft—a compact electric motor is enough.

⛳ Reliable Traction and Stability
E-4WD helps the vehicle maintain stability and strong road grip even in challenging weather conditions.

⛳ Safety and Comfort
The system increases both driving safety and comfort while reducing emissions. By using energy efficiently and redistributing torque between the front and rear wheels, E-4WD also helps improve fuel economy.

⛳ Quick Response
E-4WD reacts instantly to changes in road conditions, making driving more confident and predictable. The system operates smoothly and quietly, adding to overall driving comfort.

⛳ Highway Fuel Savings
When driving on the highway, a vehicle equipped with E-4WD automatically disables rear-wheel drive, effectively switching to front-wheel drive and saving fuel. The extra weight from the electric motor and sensors adds only a small amount to the vehicle’s total mass.

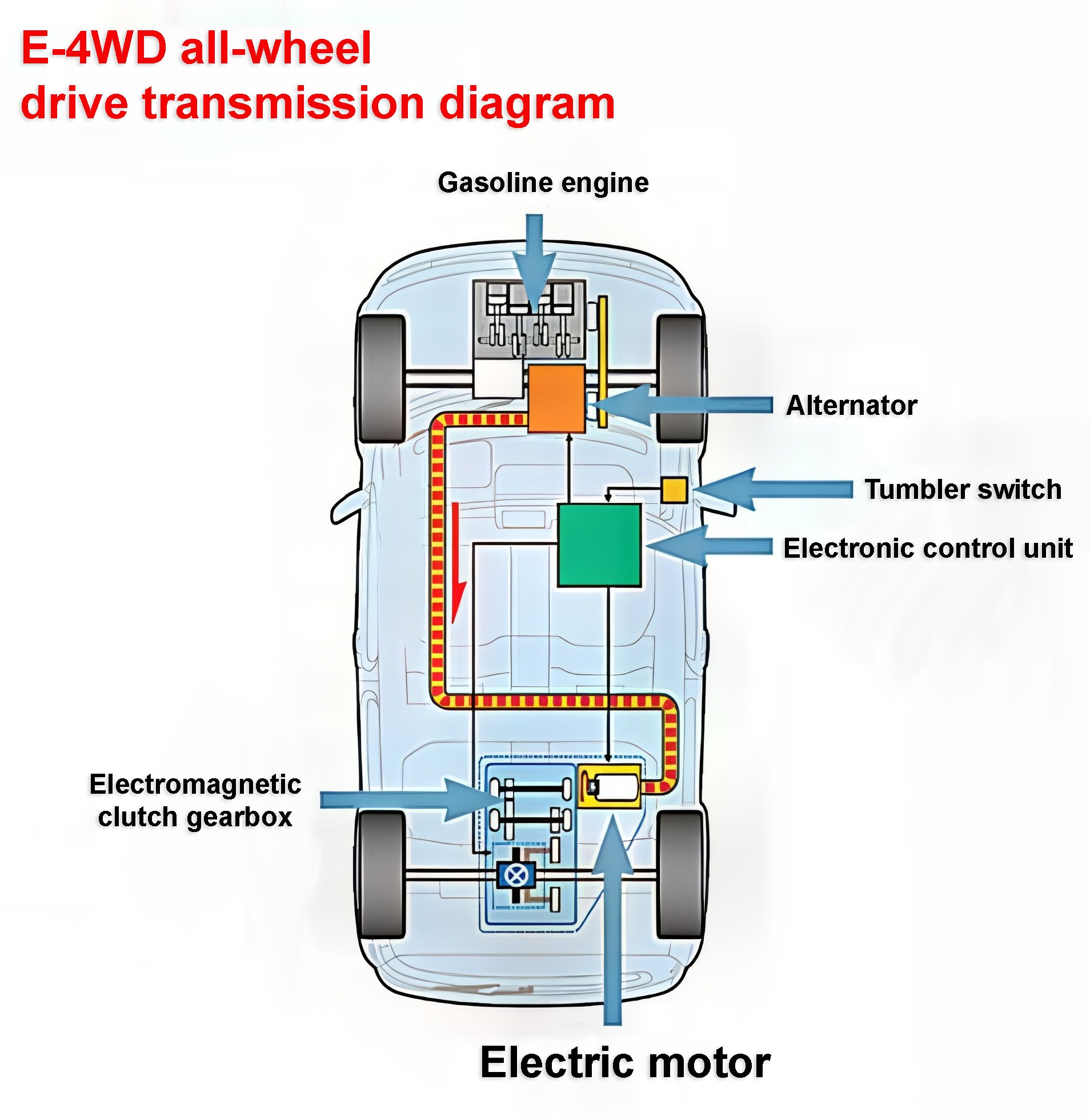

Below is a diagram illustrating the overall layout of the E-4WD system in the vehicle for clearer understanding:

Diagram Explanations:

• Front Drivetrain/Engine – Located at the front of the vehicle, providing constant power to the front wheels.
• HV4WD Module or Classic Three-Shaft Module – Positioned near the rear axle and contains the electric motor and gearbox.
• Rear Electric Motor – A separate electric unit that provides independent power to the rear wheels when needed.
• Electronic Control Unit – Placed beneath the floor to lower the center of gravity and optimize weight distribution.

This simplified sketch helps illustrate the overall layout of the E-4WD system. In actual vehicles, components may look different and be arranged differently depending on the car’s design and brand.

As a result, the only changes engineers make to the chassis and body of a vehicle equipped with an e-4WD system (beyond installing the electric motor and rear drive) are related to the placement of the exhaust system and the more vertical angle of the shock absorbers. These adjustments do not negatively affect the vehicle’s stability on rough roads or in sharp turns.

In conclusion, E-4WD is a modern technology that delivers excellent performance and handling. It helps the vehicle adapt to a wide range of road conditions, ensuring that journeys are safe, economical, and eco-friendly.
